Boss ES-8 Effects Switching System ES-8 https://www.guitar.co.uk/media/catalog/product/b/o/boss_es-8_effects_switching_system.jpg 4957054507190 BOSS

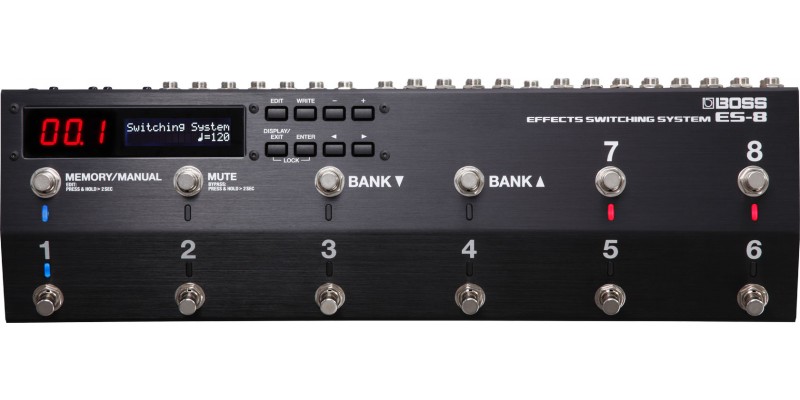

Boss ES-8 Effects Switching System

£722.00

Boss ES-8 Effects Switching System

Out of stock - Unavailable to order

SKU: ES-8

The brand new BOSS ES-8 provides your existing stompbox setup with the ease of use of Multi-FX setups. Comprehensive routing features allow insert, parallel and stereo options at different points of your existing signal chain. With 800 memory patches available you can store any of your stompbox configurations and recall them with the same ease of use as switching presets on a GT-100. No more tap dancing to turn your distortion, phaser and delay off but keeping your reverb on. All patches can be rerouted any time during live improvisation.The Boss ES-8 Effects Switching System is available to buy in our Glasgow shop. Order online for fast courier delivery across the UK and Ireland.

Boss ES-8 Effects Switching System

Your stompboxes can be connected to any of the 8 audio loops provided by the ES-8. The loops can be activated as needed to achieve various pedal combinations. The on/off state can be saved to a patch and then activated by the footcontroller of the BOSS ES8 itself. Guitar tone is preserved as the guitar signal is only routed through the effects chosen as needed .

The insert function allows rerouting of any of your effects at any time. If you want to move your reverb from last to first in your signal chain and add distortion then with the ES-8 this is now possible without unplugging patch cables and physically moving pedals around (usually in the dark!).

The parallel function takes two effects and can run them at the same time. The echo of your clean reverb sound can be heard against the edge of your distortion setting, rather than distorted reverb. This allows you to create sounds that would be impossible without two amplifiers and two pedalboard setups. In addition to the parallel function, the ES-8 has two selectable outs. You can run two completely different signal chains to two separate amps; clean and modulation effects to one amp and distortion plus phaser to another for example. This provides complete control over a stereo setup.

In addition to the eight loops provided, there is a volume loop with selectable inserts. This allows for a volume pedal to be inserted at any point of your signal chain at any time. This would allow you to blend in any effect that you would wish. Gradually fade in a reverb or a tremolo sound for example. The ES-8 has MIDI capability and can work seamlessly with MIDI controlled effects and has MIDI IN/OUT and THRU functions. It can also receive time stamp information from an external MIDI clock in order to control and sync tempo based effects.

The Boss ES8 Effects Switching System completely changes the versatility of any any existing pedalboard setup, allowing for previously impossible combinations and control. For anyone interested in experimenting with new sounds and combinations or getting the most out of an existing setup this is an absolute must.

Product Details

Loops

  • 8 (Effect loop):
  • 1 (Volume loop)    :

Patch Memory

  • 800

Pedals

  • Number switch x 8
  • BANK switch x 2:
  • MEMORY/MANUAL switch:
  • MUTE switch    :

Nominal Input Level

  • IN 1, 2 -10 dBu
  • RTN 1--6, RTN 7L, RTN 7R, RTN 8L, RTN 8R, RTN VOL: -10 dBu

Input Impedance

  • IN 1, 2 1 M ohms

Nominal Output Level

  • SEND 1--7, SEND 8L, SEND 8R, SEND VOL, OUT 1/L, OUT 2/R, TUNER -10 dBu

Output Impedance

  • OUT 1/L, OUT 2/R, TUNER 1 k ohms or greater

Recommended Load Impedance

  • 10 k ohms or greater

Display

  • 7 segments, 3 characters (LED)
  • 16 characters, 2 lines (backlit LCD)    :

Connectors

  • IN 1, 2 jacks 1/4-inch phone type
  • SEND 1--7, SEND 8L, SEND 8R, SEND VOL jacks: 1/4-inch phone type
  • RTN 1--6, RTN 7L, RTN 7R, RTN 8L, RTN 8R, RTN VOL jacks: 1/4-inch phone type
  • OUT 1/L, OUT 2/R jacks: 1/4-inch phone type
  • TUNER jack: 1/4-inch phone type
  • EXT CTL CTL 1/2, CTL 3/4, CTL 5/6 jacks: 1/4-inch TRS phone type
  • EXT CTL EXP 1, EXP 2 jacks: 1/4-inch TRS phone type
  • CTL IN EXP 1 CTL 1/2, EXP 2 CTL 3/4 jacks: 1/4-inch TRS phone type
  • MIDI connectors (IN, OUT/THRU):
  • DC IN jack    :

Power Supply

  • AC adaptor

Current Draw

  • 400 mA

Accessories

  • AC adaptor
  • Owner's manual:
  • Leaflet "USING THE UNIT SAFELY":
  • Rubber foot x 5:
  • Screw x 2    :

Options (sold separately)

  • Footswitch FS-5U, FS-6, FS-7
  • Expression pedal: BOSS FV-500L, FV-500H, Roland EV-5

Width

  • 439 mm
  • 17-5/16 inches    :

Depth

  • 137 mm
  • 5-7/16 inches    :

Height

  • 65 mm
  • 2-9/16 inches    :

Weight

  • 2.5 kg
  • 5 lbs 9 oz.:
