BOSS VO-1 Compact Vocoder Pedal VO-1 https://www.guitar.co.uk/media/catalog/product/b/o/boss-vo-1-compact-vocoder-pedal.jpg 4957054508661 BOSS

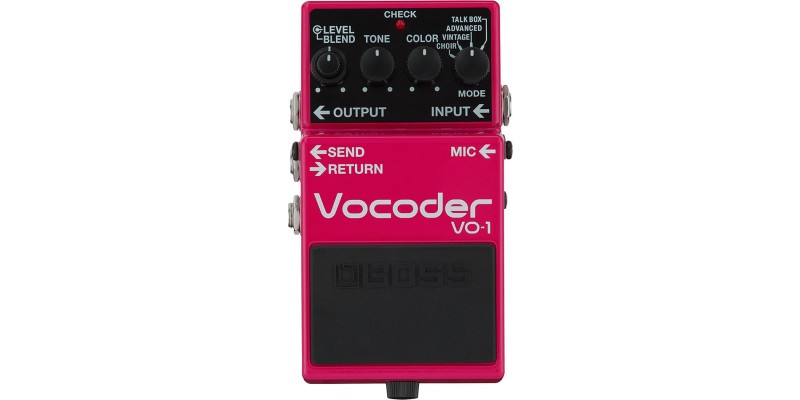

BOSS VO-1 Compact Vocoder Pedal

£194.00

BOSS VO-1 Compact Vocoder Pedal

Estimated Shipping Cost -
Free
Available to order - Call for Details

SKU: VO-1

The BOSS VO-1 Compact Vocoder is a new compact effects pedal for 2016. Make your guitar talk, sing or weep with this classic yet unusual stomp box. For sale online at Guitar.co.uk and in our Glasgow shop. We offer a fast UK dispatch and delivery service.

The BOSS VO-1 Compact Vocoder allows your voice to influence your guitar sound.

The BOSS VO-1 Compact Vocoder Pedal in unique in the way it can manipulate your guitar sound. By plugging a microphone into the side of this pedal it allows your voice to influence your guitar sound. This pedal utilises cutting edge Boss synth technology. The VO1 has 4 different modes. These include Advanced, Vintage, Talk Box and Choir. The vintage mode delivers those classic electronic synth voice sounds. Talk Box is exactly that. It makes it sound like your guitar is talking! When in Choir mode there is no need to connect a microphone. The Boss VO-1 even includes an effects loop for integration with other pedals. It will also work with bass or any instrument with a quarter inch jack. As with every Boss pedal this one comes with an extended 5 year warranty.

Product Details

  • Product Code: VO-1
  • Modes: 4 modes - ADVANCED, VINTAGE, TALK BOX, CHOIR
  • Nominal Input Level: Input, Return -20 dBu, MIC -40 dBu (MIC SENS: LOW)
  • Input Impedance: INPUT, RETURN 1 M ohm, MIC: 4 k ohms
  • Nominal Output Level: OUTPUT, SEND -20 dBu:
  • Output Impedance: OUTPUT, SEND 1 k ohm:
  • Recommended Load Impedance: 10 k ohms or greater
  • Bypass: Buffered bypass
  • Controls: Pedal switch, MIC SENS switch, MODE knob, COLOUR knob, TONE knob, BLEND knob, LEVEL knob
  • Indicator: CHECK indicator (Serves also as battery check indicator)
  • Connectors: INPUT jack, MIC jack (XLR type), RETURN jack, OUTPUT jack, SEND jack, DC IN jack
  • Power Supply: Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22), AC adaptor (sold separately)
  • Current Draw: 65 mA
  • Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.): Alkaline - Approx. 5 hours
  • Included Accessories: Owner's Manual, Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information"), Alkaline battery (9V, 6LR61)
  • Options (Sold Separately): AC adaptor PSA series:
  • Width: 73 mm
  • Depth: 129 mm
  • Height: 59 mm
  • Weight (including battery): 450 g
