SKU: ZEPHYRZMX52

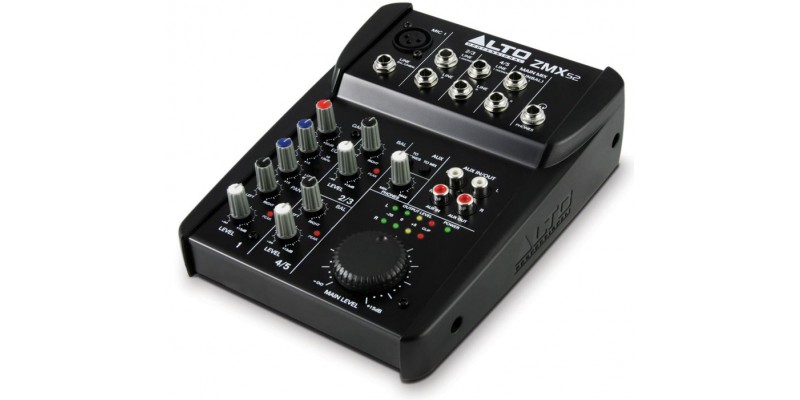

The Alto Zephyr ZMX52 is a five channel compact mixer. Despite being small and at an excellent price all the essential features are here. It is a must have for any sound engineer. Feel free to pop into our Glasgow shop to take a closer look. If you are buying mail order we offer speedy UK delivery.
The super compact Alto Zephyr ZMX52 features 5 channels.
This is perfect for a multi media setup or small gigs. The Alto Zephyr ZMX52 Compact Mixer has a single mono channel with an XLR input. This has phantom power. There is also a TRS Input and a 2 band EQ. Also included are two stereo channels with two balanced TRS inputs each. You also get two track inputs for audio playback. One of the best things about this ZMX series mixer is that it is quick to setup and easy to use. The ZMX 52 will take a variety of different microphone types. These include dynamic, condenser and wireless. Other instruments such as a keyboard or a guitar can be easily plugged in. It also makes a great hub for feeding music into. The microphone pre-amps are of a high quality. The Alto ZMX52 has a high headroom and low noise. This is an excellent value bit of kit.
Product Details
- Product Code: ZEPHYR ZMX52
Mono channel (Ch. 1)
- Microphone Input Electronically balanced, discrete input configuration
- Frequency Response: 20 Hz to 22 kHz, +/-1 dB
- Distortion( THD&N): ≦0.005% at +4 dBu, 1 kHz
- Gain range: 0 dB to 44 dB (Mic)
- Maximum Voltage Gain: 74 dB Ch. Mic Input → Main Mix out & Tape out, 80 dB Ch. Mic Input → Control room & phones
- SNR (Signal to Noise Rate): ≧110 dBu
- Phantom power (Mic Pin2/Pin3 and Pin1): +18 V
- Line Input: Electronically balanced
- Frequency Response: 20 Hz to 22 kHz, +/- 1 dB
- Distortion (THD&N): ≦0.005% at +4 dBu, 1 kHz
- Gain range: 15 dBu to 30 dBu
Stereo channels (Ch. 2 - 5)
- Line Input Electronically balanced
- SNR (Signal to Noise Ratio): ≧110 dBu
- Frequency Response: 20 Hz to 22 kHz, +/- 1dB
- Distortion (THD&N): ≦0.005% at +4 dBu, 1 kHz
- Gain range: 0 dBu
- Maximum Voltage Gain: 30 dB Ch. Line → Main Mix out
Impedance
- Microphone Input 3.9 kOhms
- All Other Input: 10 kOhms or Greater
- Tape Out: 1 kOhms
- All Other Outputs: 120 Ohms
Equalization
- Mono channel High ±15 dB @ 12 kHz, Low ±15 dB @ 80 Hz
Crosstalk
- Adjacent Input ≦-80 dB @ 1KHz (Ch. 1 - 6)
- Input to Output: ≦-75 dB @ 1KHz (Stereo L/R, Ch. 1-4, Pan panned hard left or right):
Main Mix Section
- Output level 0dBu Unbalanced, 1/4" Jacks
- Max out: +22dBu Unbalanced, 1/4" Jacks
- Noise (Bus noise): ≦-90 dB @ 20 Hz - 22 KHz (channel & Main level at 0 dB, other at minimum, DSP mute)
Power and Dims
- Power Supply 18 V, 500 mA
- Rated Power Consumption: 9 W
- Dimensions (WxLxH) 128.1mm x 204mm x 38mm
- Weight: 1.65 lb
