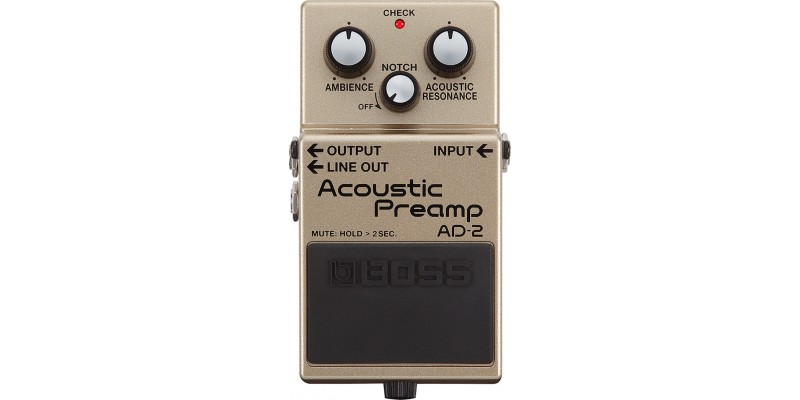

BOSS AD-2 Acoustic Preamp Pedal

SKU: AD-2

The BOSS AD-2 Acoustic Preamp Pedal is a sophisticated acoustic preamp, presented in a convenient stompbox-sized footprint. Packed with advanced BOSS processing, operating within multiple interlocking parameters, the BOSS AD-2 Acoustic Preamp exists to give you the control to faithfully reproduce your acoustic sound live on stage. What's more, it is fitted with a balanced DI out, as well as standard output, allowing it to be plugged straight into a PA as well as a normal acoustic amp.

The AD2 Acoustic Preamp is a powerful pedal from BOSS, and is now available from Merchant City Music, online and in our Glasgow store. We ship fast to the UK and Europe.

BOSS AD-2 Acoustic Preamp Pedal

Acoustic-electric guitar preamp with advanced BOSS sound processing
Sophisticated under-the-hood processing with multiple interlocked parameters, accessible with simple stompbox controls
Acoustic Resonance reproduces the complex resonance characteristics of an unplugged acoustic
Ambience knob provides wide-ranging, studio-quality reverb optimized for acoustic guitar
Notch filter for instant feedback reduction
Normal output for an acoustic guitar amp and balanced DI output for direct PA connection
Sound mute function for switching guitars and tuning on stage
BOSS five-year warranty

Product Details

Nominal Input Level: -20 dBu
Input Impedance: 10 M ohms
Nominal Output Level: -20 dBu (Both standard and balanced line outputs)
Output Impedance: OUTPUT jack - 1 k ohm, LINE OUT jack - 600 ohms
Recommended Load Impedance: OUTPUT jack - 10 k ohms or greater, LINE OUT jack - 600 ohms or greater
Bypass: Buffered bypass
Controls: Pedal switch, acoustic resonance knob, ambience knob, notch knob
Indicator: CHECK indicator (Serves also as battery check indicator)
Connectors: INPUT jack -1/4-inch phone type, OUTPUT jack - 1/4-inch phone type, LINE OUT jack - 1/4-inch TRS phone type, DC IN jack
Power Supply: Alkaline battery (9 V, 6LR61), or Carbon-zinc battery (9V, 6F22), AC adaptor (sold separately)
Current Draw: 55 mA
Expected battery life under continuous use: Alkaline - Approx. 6 hours, *These figures will vary depending on the actual conditions of use
Included Accessories: Owner's manual, Leaflet, Alkaline battery (9V, 6LR61)
Options (sold separately): AC adaptor - PSA series
