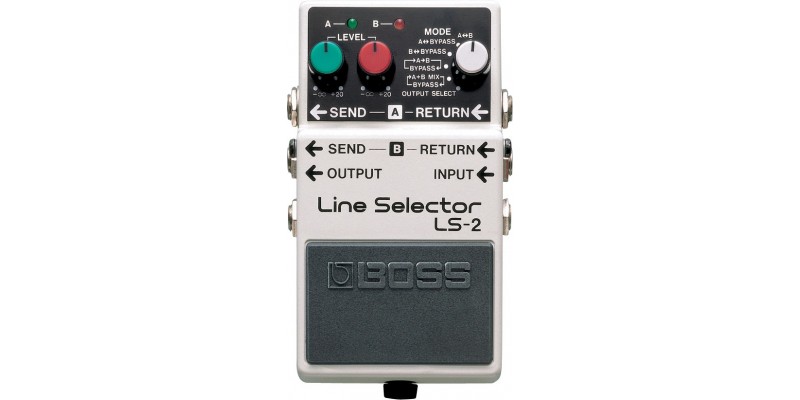

Boss LS-2 Line Selector Pedal

Product Details

• Nominal Input Level: -20 dBu
• Input Impedance: 1 M ohm
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 10 k ohms or greater
• Bypass: Buffered bypass
• Controls: MODE selector switch, LEVEL knobs A/B, Pedal switch
• Indicator: Line indicator A/B (Used for indication of check battery)
• Connectors: INPUT jack - 1/4-inch phone type, SEND jacks A/B - 1/4-inch phone type, RETURN jacks A/B - 1/4-inch phone type, OUTPUT jack - 1/4-inch phone type, DC IN/OUT jack
• Power Supply: Alkaline battery (9 V, 6LR61), or Carbon-zinc battery (9V, 6F22), AC adaptor (sold separately)
• Current Draw: 25 mA
• Expected battery life under continuous use: Carbon - Approx. 14 hours, Alkaline - Approx. 30.5 hours, *These figures will vary depending on the actual conditions of use
• Included Accessories: Owner's manual, Leaflet, Carbon-zinc battery (9 V, 6F22)
• Options (sold separately): AC adaptor - PSA series
