Line 6 Relay G10S Pedalboard Wireless Guitar System GRELAYG10SUKII https://www.guitar.co.uk/media/catalog/product/l/i/line_6_relay_g10s_pedalboard_wireless_guitar_system_with_g10t_ii.jpg 614252325837 LINE 6

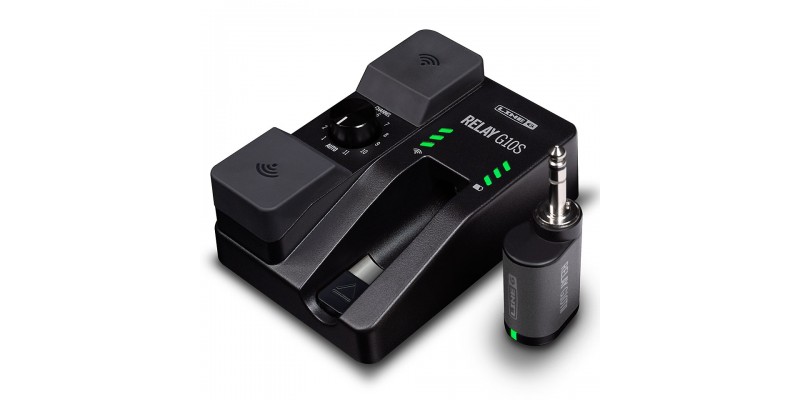

Line 6 Relay G10S Pedalboard Wireless Guitar System

£306.00

Line-6-Relay-G10S-Pedalboard-Wireless-Guitar-System-Main

Estimated Shipping Cost -
Free
Available to order - Call for Details

SKU: GRELAYG10SUKII

Finance available for this product

Calculate your finance...

The Line 6 Relay G10S is a stompbox plug-and-play guitar wireless system, which makes it a cinch to go cable-free. Both simple to use, and rugged in construction, the G10S stomp box receiver takes its place among your other pedals, automatically locating and locking onto the best frequency when you plug in the G10T II transmitter. What’s more, it includes an XLR DI output, allowing you to plug straight into your venue’s system.

Now available from Merchant City Music, online and in our Glasgow store, visit us or give us a call; a staff member is always on hand to talk you through the features and specs of the Line 6 Relay G10S. Alternatively, buy online for fast delivery to the UK and Europe.

Line 6 Relay G10S Pedalboard Wireless Guitar System

The Relay G10S is a compact instrument wireless system that frees guitarists and bassists to move around the stage untethered. A member of the Relay Wireless family of products that are renowned for their reliability, the Relay G10S wireless system features a rugged metal stompbox receiver that easily integrates into a pedalboard, as well as simple plug-and-play operation. Thanks to its intelligent setup features, the unit immediately locates and locks onto the strongest available wireless frequency as soon as the transmitter is docked in the receiver.

The Relay G10S provides pristine 24-bit audio quality, free from dropouts and interference, and has an impressive 130' line-of-site range. RF and battery status indicators are large and always visible, and you get both a 1/4" main output to feed your amp or pedalboard and an XLR DI output for connecting the Relay G10S system directly to a P.A. The system also includes the compact G10T II transmitter, which plugs into your instrument's input and features a rechargeable battery that provides 8 hours of playing time on a single charge.

Product Details

  • Transmission Range: Up to 130 feet line-of-sight (may vary due to local conditions)
  • Battery Life: Approx. 8 hours (internal rechargeable battery)
  • Frequency Scanning: Yes
  • Support For Multiple Transmitters: No
  • Support For Multiple Instruments: Auto/ Manual Channel Switch
  • Transmitter Connectors: 1/4-inch Male unbalanced input plug
  • Receiver Connections: 1/4-inch output, Balanced XLR DI output
  • Power: 9V DC Barrel 500mA 5V DC 1A MicroUSB
  • Transmitter Sleep Mode: Automatic, activated after 4 minutes without any audio input extends standby time up to 200hrs
  • Controls: Channel 1-11 select, Automatic Channel Scan and Select, Cable tone
  • System Latency: <2.9ms (RF2 mode)
  • Antennas: Internal Antennas
  • Frequency Response: 10Hz - 20kHz
  • Dynamic Range: >112dB
  • RF Carrier Frequency: 2.4GHz
  • Operating modes: RF2
  • Compatible Channels: Up to 11 (manual), Up to 14 (automatic)
  • Transmitter LED Display: Power, Status
  • Receiver LED Displays: Connection Status, Transmitter Battery Life
  • Power Supply: DC-1g power supply (9VDC)
