Seymour Duncan Vapor Trail Analog Delay Pedal 1611900-002 https://www.guitar.co.uk/media/catalog/product/s/e/seymour-duncan-vapor-trail-analog-delay-pedal_1.jpg 800315039685 Seymour Duncan

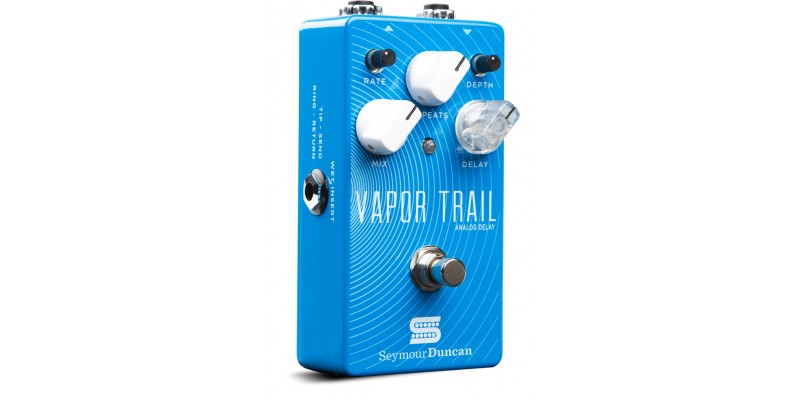

Seymour Duncan Vapor Trail Analog Delay Pedal

RRP: £250.00

£199.00

Seymour Duncan Vapor Trail Analog Delay Pedal

Estimated Shipping Cost -
Free
In stock online - Ships immediately

SKU: 1611900-002

The Seymour Duncan Vapor Trail is an analog delay pedal. It delivers lush vintage delay sounds. It stays clear though without turning into mush. Works well through a good tube guitar amp.

Seymour Duncan Vapor Trail with Warm but Clear Tones

Do you love the sound of a warm, vintage analogue delay pedal? The Seymour Duncan Vapor Trail will do this with a little but extra on the side. Plenty of warm character and vintage tones are on tap at the stomp of a button. This is achieved using Bucket Brigade Devices. You can also add very responsive modulation into your guitar sound. Not only that, you have excellent control over it. It also features a TRS insert jack on the side. What this lets you do is add in some guitar effects to the signal. In fact there a number of ways the TRS jack can be set up on the Seymour Duncan Vapor Trail. You can also output a wet only signal. It could also be set up with a multi guitar amp rig. Or, if you need some extra control over the delay plug a standard volume pedal into it. With this you can control the amount of effect coming from this analogue delay pedal. This could be from zero to full on. When it is at maximum there is 3dB increase in volume compared to the dry signal.

Analog Delay Pedal with modulation controls

The Seymour Duncan Vapor Trail retains all the vintage character but has its feet firmly planted in the modern. You gain some pretty great controls on this analog delay pedal. Just one of the things that makes it stand out from the competition. On the pedal you have controls for the delay. These include Delay, Repeats and Mix. You also get control over the modulation. These included a Rate and Depth control. Just to round off the great list of features of the Seymour Duncan Vapour Trail is a translucent delay knob. Inside it is a blue LED that flashes the delay time.

The Seymour Duncan Vapor Trail is an excellent analog delay pedal that blends both old and new. It puts its nearest competitors to shame.

Product Details

  • Product Code: 1611900-002
  • Product Name: Seymour Duncan Vapor Trail - Analog Delay
  • Type of Circuitry: Analog Bucket Brigade Devices (BBDs) supported
    by modern low-noise analog electronics. No microprocessors or digital
    signal processors.
  • True Bypass:
  • Delay Range: 15ms to 600ms. Actual delay time indicated by flash rate
    of illuminated delay time knob.
  • Dry Gain: 1dB fixed
  • Wet Gain: Adjustable from muted to +3dB. At the highest blend
    settings, the first echo is actually louder than the dry signal.
  • Repeat Control Range: One repeat to runaway repeats
  • Modulation Range: 0.2Hz to 4 Hz
  • Modulation Depth Range: Zero to “over the top”
  • Auxiliary Functions: Wet channel insert loop , allows external effects
    to be applied to only the wet signal. Also serves as a wet-only output for
    wet/dry stereo or studio use.
  • Dry Frequency Response: <-1dB @ 10 Hz and 100 kHz
  • Dry Distortion: 0.002% at 250 Hz, 1V RMS output
  • Dry Noise Floor: -100dBv at output, 400Hz to 20kHz with input
    unplugged
  • Wet Noise Floor: -90dBV at output, 400Hz to 20kHz
  • Input Impedance: 1 Meg (active); open (bypassed)
  • Output Impedance: 1K ohm
  • Power: Internal 9V battery or external 9V-18V regulated power supply.
    Standard 9V is recommended.
  • Current Consumption: 11mA typical
