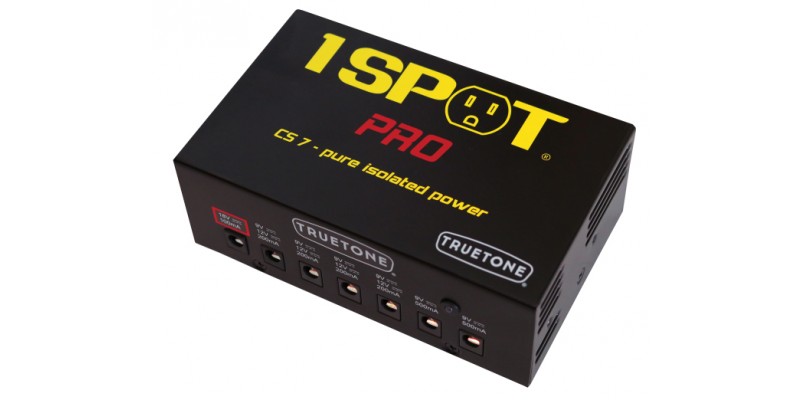

Truetone 1 SPOT Pro CS7 Guitar Effects Power Supply

Truetone 1 SPOT Pro CS7 Guitar Effects Power Supply

RRP: £119.00

£112.00

Truetone 1 SPOT Pro CS7 Guitar Effects Power Supply

Estimated Shipping Cost -
Free
In Stock In Store - Ships immediately

SKU: TT-CS7

The Truetone 1 Spot Pro CS7 is an isolated power supply for guitar effects pedals. It can be switched between 115 and 230 volts. This means you can use it in most countries. It is in fact one of the most comprehensive PSU's you can buy. Buy online today from Guitar.co.uk or visit our Glasgow shop, Merchant City Music. Fast European and UK delivery service.

The Truetone 1 SPOT Pro CS7 is an isolated power brick with switching technology.

For many years, Truetone has made musicians’ lives easier with the 1 SPOT, the original compact pedalboard power supply. It works so well that a lot of musicians never felt the need to get one of those brick-style power supplies, and we here at Truetone didn’t see the need for those either, even though they were quite popular. Bob Weil, founder of Truetone, explains:

“A lot of people over the years had told us that we should make a power brick. Even some of my own staff urged me to do it, but I didn’t want to for two reasons. First, I knew the 1 SPOT could power just about every pedal out there, so I didn’t see the need. Second, I didn’t want to make just another knock-off of someone else’s power brick. If we were going to make one, we were going to do it our way and have features that nobody else could offer. As pedal designs changed and it became more common for digital pedals to require isolation and for others to need something other than 9Vdc, I finally saw a reason for us to design a power brick.”

“It took 3 years and lots of experimentation, but we were finally able to design a 1 SPOT Pro CS7, using our own proprietary technology to give musicians all the features they need for today’s pedalboards. The original 1 SPOT still works great for most musicians, but for those who need more power and versatility, the 1 SPOT Pro fills the need perfectly.”

Multiple Voltages.

While most pedals still run off 9VDC, not all of them do. That’s one of the main reasons they we finally decided to design the 1 SPOT Pro. With the CS7, you get one output for 18VDC and six at 9VDC, with four of those switchable to 12VDC. Need another 18VDC output? No problem… just get a Multi-Plug 2 cable (MC2) and run both pedals off that one outlet… most boosts and drive pedals don’t mind sharing an output anyway. Don’t need the 18VDC output at all? No problem… just get Truetone’s 18V to 9V Converter cable (V189).  With the CS12, you get the same voltage options that the CS7 has, plus a variable 4-9VDC output, and the 9VAC output.

Worldwide Input Voltages.

Just like with the original 1 SPOT, and your laptop power supply and phone charger, the 1 SPOT Pro uses switching power supply technology which allows you to use it anywhere in the world. The CS12 has an input voltage switch on the back, which switches voltage only for the 9VAC output, since that output does use a toroidal transformer. The rest of the outputs on the CS12, and all of them on the CS7, don’t care what the input voltage is.

Rugged Steel Housing.

If you’re a touring musician, or even if you just play at the local pub regularly, you know how important it is to have roadworthy gear. No worries with the 1 SPOT Pro. The housing is all steel, with cleverly designed vents that should keep out the accidental beer spill, should that ever happen.

Cables.

The 1 SPOT Pro includes a generous assortment of cables and converter plugs. The cables are of various lengths, colour-coded for easy cable management and with right angle plugs on the pedal end.

Power cables (all are centre pin negative polarity):
(4) DC18 (5.5x2.1mm barrel plugs; 18” (457mm) – White
(3) DC12 (5.5x2.1mm barrel plugs; 12” (305mm) – Yellow

Converter Plugs:
(1) CL6 – (5.5x2.1mm barrel input, 5.5x2.5 barrel output; reverse polarity)
Green – for Line 6 DL4/M9/etc. and some Eventide pedals.
(1) CYR – (5.5x2.1mm barrel input, 5.5x2.1 barrel output; reverse polarity)
Red – reverse polarity converter
(1) C35 – (5.5x2.1mm barrel input, 3.5mm male output; tip positive)
Black – 3.5mm (1/8”) plug converter
(1) CBAT – (5.5x2.1mm barrel input, Black battery clip output) Connects to batter clip wires inside pedals that do not have DC jacks. Do NOT connect to a battery!

Pure Isolation.

Since pioneering the first switching power supply for musicians, the original 1 SPOT, they’ve gained many years of experience in creating very low noise power for pedals. When they started designing the 1 SPOT Pro CS7, the first multiple output switching power supply, we worried a lot about how to eliminate noise completely. Isolation is part of the solution to noise elimination, but not all of it. Each output is galvanic-ally isolated from the other to help give you pure, clean, noise-free operation of your pedals. However, we also provided an additional layer of pure analogue regulation, taking advantage of the greater ability of analogue circuits to provide the highest possible suppression of in-band audio noise. There is an artistry involved in these designs, and it’s come at the price of decades of hard work. But all of this put together is what we call Pure Isolation.

Pedaltrain CS7 Mounting Brackets.

The only power brick to include easy-to-install mounting brackets for Pedaltrain pedalboards. Truetone even duplicated the output labels under the unit, so you can easily see which output is which, when working on your board. Yes, they thought of that too!

Energy Efficient.

Prior to the 1 SPOT CS7, musicians either used one linear power supply (a.k.a. wall wart) per pedal, or used batteries. Both solutions for powering pedals were very inefficient with energy, with batteries also contributing greatly to the toxic waste stream.
In 2000, Truetone pioneered the use of switching power supply technology to alleviate this condition in an economically-, energy- and environmentally-conservative way. The 1 SPOT power supply was designed to replace many such external power supplies and/or batteries simultaneously. It provided plenty of power with a very low noise level to successfully meet the needs of musicians.

By offering musicians a solution that was more cost effective and energy efficient, and moving the market away from linear transformer-based power supplies to switching power supplies, Truetone has caused the saving of thousands of watt-hours per musician per year.
Utilizing a more comprehensive switching power supply solution, the 1 SPOT Pro CS 7 sets a new level of efficiency for power bricks, while still meeting the needs of musicians for low noise operation, even in severe conditions where the pedals themselves may generate interfering noise.

Product Details

  • Product Code: TT-CS7
  • Dimensions: 5.5” x 3.37” x 2”  (140 x 86 x 50mm); 1.31 lbs. (592 grams) - weight and dimensions of power supply only, not including cables or packaging.
  • Switching Voltage: Outputs 2-5 (9VDC or 12VDC)
