Zoom A1X Four Acoustic Guitar Multi-Effects Pedal A1X FOUR 4515260022151 Zoom

Zoom A1X Four Acoustic Guitar Multi-Effects Pedal

RRP: £179.00

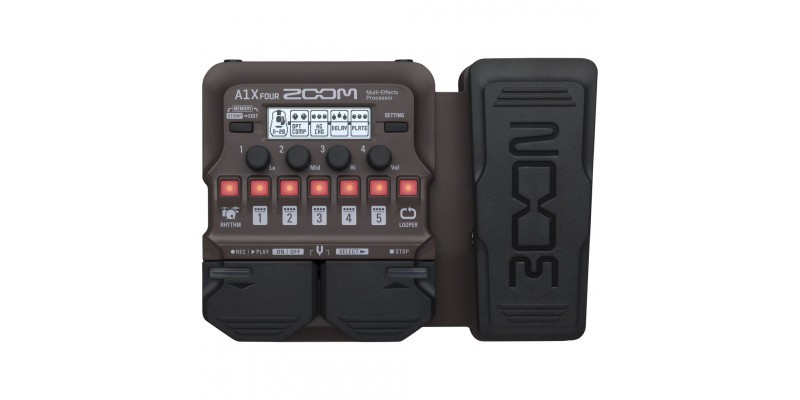

Zoom A1X Four Acoustic Guitar Multi-Effects Pedal Front

Estimated Shipping Cost -
On order with supplier


The Zoom A1X Four Multi-Effects Pedal is packed with over 90 effects designed specifically for Acoustic Guitar, Saxophone, Trumpet, Violin, Harmonica, Acoustic Bass, and other acoustic instruments. A built-in looper, chromatic tuner and expression pedal further widen its versatility, as does access to ZOOM’s Guitar Lab software. The included MAA-1 mic adapter allows you to plug in a mic, even featuring phantom power capability.

The Zoom A1X Four is now available from Merchant City Music, online and in our Glasgow store. We are Glasgow’s longest-established guitar specialist, shipping fast to our customers in the UK, Europe and Worldwide.

Zoom A1X Four Acoustic Guitar Multi-Effects Pedal

With specially engineered effects, built-in looper and drum machine, the A1/A1X FOUR is the first Multi-Effects Processor designed for a variety of acoustic string and wind instruments. The A1X Four is preloaded with over 90 effects, including more than 35 new groundbreaking effects designed and engineered for acoustic instruments.

Unlock the Potential of Your Acoustic Guitar

Add a multitude of warm and rich tones to your guitar. From live “unplugged” performance sounds to the finger-playing style of country and blues, there’s so much to choose from. Gorgeous effects and acoustic guitar modelling will take your instrument to places it’s never been before.

Add depth and dimension with acoustic emulators and modelling. Refresh your instrument’s natural sound, allowing your live performances to sound just like your studio recordings. Select and hone in on the tone of your favourite guitar make and style.

The A1X Four makes it easier than ever to process the sound of your own Acoustic Guitar. With a selection of 15 factory presets (plus 13 more available as free download on Guitar Lab), you can select your favourite AG MODEL, D-28 for example, and recover instantly the sound character of that renowned and original body shape.

IR (Impulse Response) technology is used to capture the sonic fingerprint all guitar shapes and bodies available on the A1/A1X FOUR and via Guitar Lab. Each AG MODEL can be adjusted with 4 parameters (Gain, Bass, Mid, Treble) to control the volume and refine the audio output of your modelled sound.

In Patches you can also set the AG Pickup Selector (AG PU SEL) to match your guitar’s pickup type (Piezo or Magnetic) and add a specific EQ modelled on a variety of dedicated processors.

Guitar Lab Supported

With a free download, ZOOM Guitar Lab software explore an endless world of patches and effects. And with its added ability to edit effects and arrange patches designed for Acoustic Instruments, you can experiment and create endless combinations.

The Perfect Partner

The Included Zoom MAA-1 mic adapter provides a hassle-free connection to the A1X Four. It works with dynamic microphones and even provides phantom power for condenser mics. Add effects to any acoustic instrument and adjust gain settings with the MAA-1’s easy-access controls.

Zoom A1X Four Features:

  • A1X Four offers over 90 built-in effects
  • Dedicated effects for acoustic guitar, saxophone, trumpet, violin, and harmonica
  • Up to 5 effects can be used simultaneously, chained together in any order
  • 50 memory locations for storing user-created patches
  • Looper for recording up to 30 seconds / 64 beats of CD-quality audio with seamless start and end times
  • ZOOM Guitar Lab software for creating, editing and managing effects and patches
  • 68 built-in rhythm patterns tailored for unplugged styles of music can be used in combination with the Looper
  • Onboard chromatic tuner supports all standard guitar tunings, including open and drop tunings
  • Output jack for connection to amp or headphones
  • A1X Four runs on 4 AA batteries, with alkaline battery life of 18 hours; MAA-1 Requires 2 AA batteries
  • USB port for firmware updates, power and connection to ZOOM Guitar Lab

Product Details

  • Maximum number of simultaneous effects: 5
  • User patches: 50
  • Sampling frequency: 44.1 kHz
  • A/D conversion: 24-bit, 128× oversampling
  • D/A conversion: 24-bit, 128× oversampling
  • Signal processing: 32-bit
  • Display: 128x32 dot matrix LCD
  • INPUT: Standard mono phone jack Rated input level -20 dBu / Input impedance (line) 470 kΩ
  • AUX IN: Stereo mini jack Rated input level -10 dBu / Input impedance (line) 1kΩ
  • OUTPUT: Standard stereo phone jack (combined line/headphone) Maximum output level - Line +2 dBu (10 kΩ or more output impedance) / Headphones 17 mW + 17 mW (32Ω load)
  • Input S/N: 120dB
  • Noise floor (residual noise): -97 dBu
  • Power: AC adapter 9V DC 500mA center negative (ZOOM AD-16 - NOT included) / 4 AA batteries (about 18 hours continuous operation time when using alkaline batteries with the LCD backlight off)
  • USB: USB MIDI, USB Micro-B Power can also be supplied through the USB port.When using a cable designed only for power, other USB functions cannot be used.
  • External dimensions: 156 mm (D) × 216 mm (W) × 52 mm (H)
  • Weight: 610 g (excluding batteries)

Included MAA-1 Microphone Adapter

  • Input INPUT XLR balanced input (2 hot) Input gain +3 – +30 dB / Input impedance 10 kΩ / Maximum input level +4 dBu / +48V phantom power
  • Output: Standard mono phone jack Nominal output level −20 dBu / Maximum output level +7 dBu / Output impedance 1 kΩ
  • Power: 2 AA batteries. Continuous operation time (when phantom current is 3 mA) About 15 hours (using alkaline batteries) / About 15 hours (using nickel metal hydride batteries)
  • External dimensions: 177 mm (D) × 23 mm (W) × 25 mm (H)
  • Weight: 70 g (excluding batteries)
