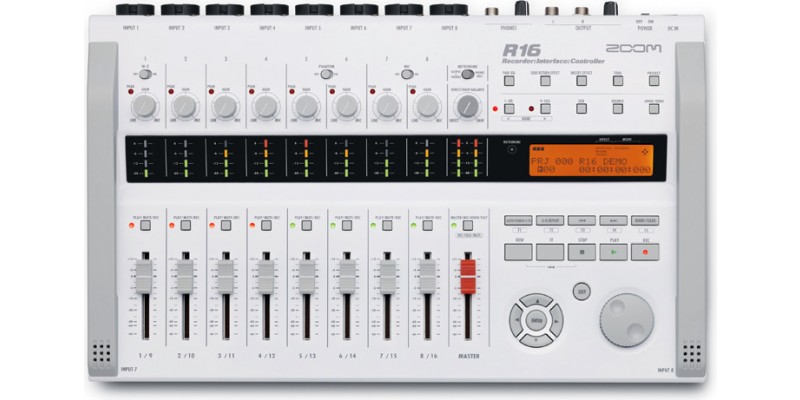

Zoom R16 Recorder Interface Controller

Product Details

• Model Name: Zoom R16

Recorder

• Physical Tracks 16 ●Simultaneous Recording Tracks 8 ●Simultaneous Playback Tracks : 16 ●Recording Data Format 44.1kHz, 16/24bit WAV ●Maximum Recordable Time : 200 minutes / GB (referred to mono tracks) ●Projects 1,000 ●Markers : 100 / Project ●Locator Min. / Sec. / msec or Meas. / Beat / Tick ●File Editing : Divide ●Other Functions Punch-In / Out (Manual, Automatic), Bounce, A-B Repeat, UNDO / REDO:

Audio Interface

• Input Channels 8 ●Output Channels 2 ●Quantization : 24bit ●Sampling Frequency 44.1, 48, 88.2, 96kHz:

Mixer

• Faders 9 ●Level Meters 4-Segment LED ●Track Parameters : 3-Band Equalizer, Pan (Balance), Effect Send x 2, Invert ●Stereo Links Track pairs 1/2 to 15/16 selectable:

Effects

• Algorithms 9 (CLEAN, DISTORTION, ACO / BASS SIM, BASS, MIC, DUAL MIC, STEREO, 8 x COMP EQ, MASTERING) ●Types 135 ●Modules : 7 for Insert, 2 for Send / Return ●Patches 330 for Insert, 60 for Send / Return ●Tuner : Chromatic, Guitar, Bass, Open A/D/E/G, D modal

Metronome

• Sounds 5 ●Beat 1/4 - 8/4, 6/8, Unaccented ●Tempo : 40.0 - 250.0 BPM

Hardware

• Recording Media SD Card (16MB-2GB), SDHC Card (4-32GB) ●A/D Conversion 96kHz 24bit delta-sigma ADC ●D/A Conversion : 96kHz 24bit delta-sigma DAC ●Display 20-digit 2-line custom LCD (with backlight) ●Inputs : 8 x XLR-1/4''Phone Combo Jack / Input Impedance (Balanced input) 1kΩ balanced, 2nd hot, (Unbalanced input) 50kΩ unbalanced, (Hi-Z Input) 470kΩ / Input Level: -50dBm to +4dBm continuously variable ●Built-in microphones Omnidirectional condenser microphones Gain: -50dBm to +4dBm continuously variable ●Phantom Power Supply 48V (with On/Off switch) ●Master Output : 1/4"TRS Phone (balanced) / Output Impedance 1kΩ / Rated Output Level: +4dBm ●Headphones Output 1/4''Stereo Phone Jack, 20mW x 2 (at 32Ω load) ●USB : [B type (USB2.0 High-Speed compatible)] Audio Interface / Control Surface or Mass Storage Class operation [A type (USB2.0 High-Speed compatible)] USB Host capability ●Power Requirements AC adaptor (DC5V/1A/center positive) or AA size (LR6) battery x6 ●Battery Life : 4.5 hours (with backlight on and phantom power off) ●Dimensions 376(W) x 237.1(D) x 52.2(H) mm ●Weight : 1.3kg (without batteries)
